Batching, Makeup Machinery

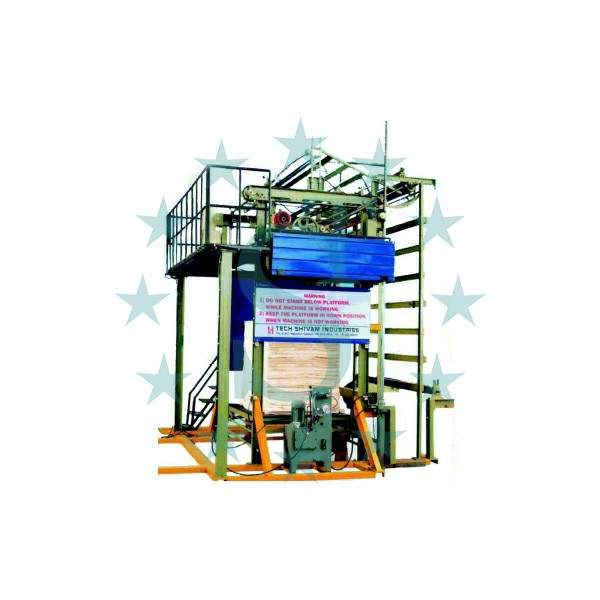

Palletizing Machine
- Custom made Machine, Fabric width on request.
- Maximum Capacity: 1500meters.
- Working table descends up to 78” (2000mm).
- Length of folds adjustable up to 1.00 meter.
- Rigid structure of M.S. Channel to withstand width and weight of the fabric.
- Folding blades are mounted on the carriage off steel roller chain.
- A simple device for exact adjustment of the folding blades
- Hydraulic System for counterbalancing of the platform comprising of double acting hydraulic cylinder and hydraulic power pack for pushing and pulling of the table: Capacity 1000kg.
- Standing platform at double folding level.
- Ladder for climbing up to the double folding level.
- Main Electric Motor 3hp x 1000rpm with suitable starter and switches.
[spbsm-follow-buttons]
₹500,000.00
Technical Specification
- Custom made Machine, Fabric width on request.
- Maximum Capacity: 1500meters.
- Working table descends up to 78” (2000mm).
- Length of folds adjustable up to 1.00 meter.
- Rigid structure of M.S. Channel to withstand width and weight of the fabric.
- Folding blades are mounted on the carriage off steel roller chain.
- A simple device for exact adjustment of the folding blades
- Hydraulic System for counterbalancing of the platform comprising of double acting hydraulic cylinder and hydraulic power pack for pushing and pulling of the table: Capacity 1000kg.
- Standing platform at double folding level.
- Ladder for climbing up to the double folding level.
- Main Electric Motor 3hp x 1000rpm with suitable starter and switches.
Payment, Taxes and Delivery
Delivery: Delivery of machine is ideally comes within 4 to 6 weeks.
Freight: Will be paid by the customer.
Sales Tax: C.S.T against form “c” else 5% Or Vat 4% +1% No CST against form “H”( export orders).
Erection: Will be charged extra per machine over and above given price.
1. Select Product
Choose the required specification & submit the details.
2. Get Offer
Get a Detailed Offer.
3. Pay The Advance
Pay the advance amount as per agreed terms.
4. Product Under Construction
Product goes under Construction according agreed time.
5. Pay The Rest Amount
Pay the balance amount as your machine get ready to dispatch.
6. Shipment Initiated
Shipment option available through Manufacturer.
7. Installation
Finally, the product will be installed at your plant.
