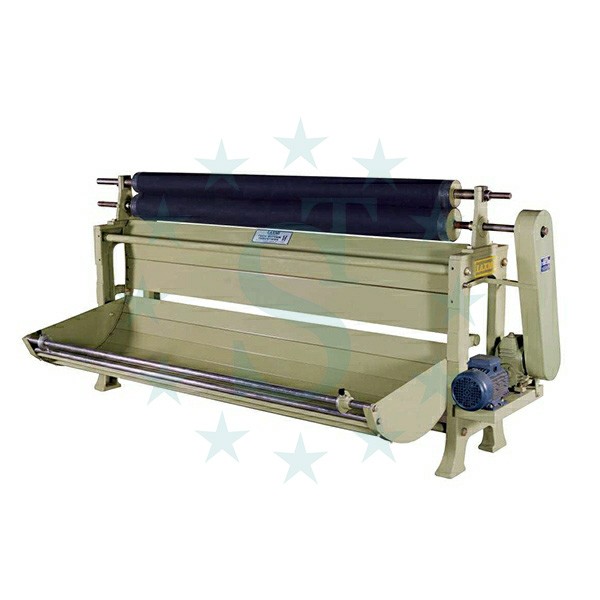

Batch Unwinding Device
Batch Unwinding Device use to unwind fabric by which fabric can be process in loose form so fabric can be wash, dye or rechecked. it comes with following features
- Firstly, it comes “J” Type Scray for collection of excess fabric which helps collet fabric at one place.
- Secondly, 1000 mm roller length can be unwind.
- Thirdly, 1000 mm width to 3500 mm of machine working width can be made as per customer need.
- Fourthly and most importantly fabric can be unwind with Speed up to 50meters/minute.
In conclusion, this machine is best suitable for garment industry, fabric warehouse or dyeing & printing units.
[spbsm-follow-buttons]
₹230,000.00
Compare
Batch Unwinding Device
Batch Unwinding Device use to unwind fabric by which fabric can be process in loose form so fabric can be wash, dye or rechecked. it comes with following features
- Firstly, it comes “J” Type Scray for collection of excess fabric which helps collet fabric at one place.
- Secondly, 1000 mm roller length can be unwind.
- Thirdly, 1000 mm width to 3500 mm of machine working width can be made as per customer need.
- Fourthly and most importantly fabric can be unwind with Speed up to 50meters/minute.
In conclusion, this machine is best suitable for garment industry, fabric warehouse or dyeing & printing units.
In other words, using this machine can make it easy to get fabric in loose form from roll form.
Above all it is a faster process to unwind the fabric then doing it manually.
Technical Specification
- 5.5” Dia Driving Roll – 1 Nos.
- 4.5” Dia Pressure Roll – 1 Nos.
- J’ Type Scray for collection of excess fabric.
- 2HP x 1000rpm, 415 Electric Motor, Starter, Gearbox, Pulleys.
- Speed: 50meters/minute.
Payment, Taxes and Delivery
Payment: 50% Advance online & Balance against Proforma Invoice prior to dispatch.
Delivery: Delivery of machine is ideally comes within 4 to 6 weeks.
Freight: Will be paid by the customer.
Sales Tax: GST 18% Or Vat 4% +1% No CST against form “H”( export orders.
Erection: Will be charged extra per machine over and above given price.
1. Select Product
Choose the required specification & submit the details.
2. Get Offer
Get a Detailed Offer.
3. Pay The Advance
Pay the advance amount as per agreed terms.
4. Product Under Construction
Product goes under Construction according agreed time.
5. Pay The Rest Amount
Pay the balance amount as your machine get ready to dispatch.
6. Shipment Initiated
Shipment option available through Manufacturer.
7. Installation
Finally, the product will be installed at your plant.
| Working table descends | 1000 mm, 1100 mm, 1200 mm, 1300 mm, 1400 mm, 1500 mm, 1600 mm, 1700 mm, 1800 mm, 1900 mm, 2000 mm, 2100 mm, 2200 mm, 2300 mm, 2400 mm, 2500 mm, 2600 mm, 2700 mm, 2800 mm, 2900 mm, 3000 mm, 3100 mm, 3200 mm, 3300 mm, 3400 mm, 3500 mm |
|---|---|
| Maximum Roll Size | 100 mm, 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm, 900 mm, 1000 mm |
