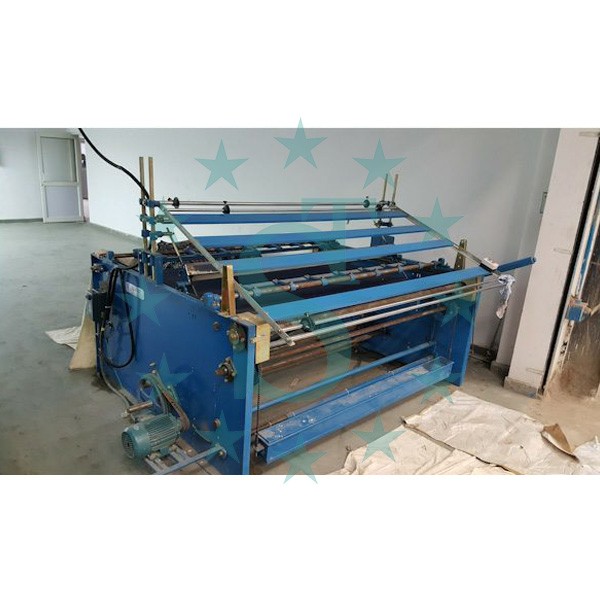

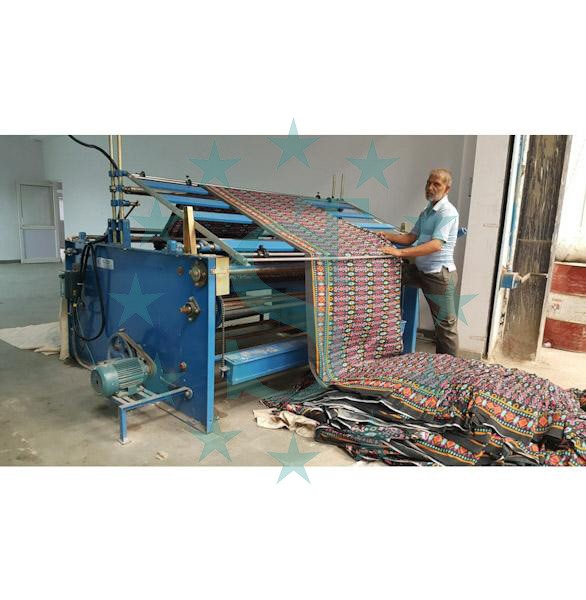

Single Folding Machine
This Single Folding machine or fabric folding machine is one of the fabric makeup machinery which has the following features :
- Firstly, the Single Folding machine does fold the fabric from a loose form to an organized plated state before performing dyeing/printing/processing operations.
- In other words, the fabric needs an inspection before starting any processes.
- Secondly, the Single Folding machine also measures fabric length before any operation or after all processes.
- Thirdly, the Single Folding machine comes in four different sizes from 41″/36 (Small)* to 72″/67 (Large)
- Fourthly, woven fabrics like cotton, viscose, rayon, wool & polyester weigh from 70 to 700 gsm/meter square and fold on a Single Folding machine.
- Fifth and most importantly, the speed can be achieved up to 50 meters per minute while performing the process.
In conclusion, this fabric folding machine is best suitable for the garment industry or dyeing & printing plants.
🔸 Technical Specification
✅ For fabric up to 1700MM
✅ The working table descends up to 15” (380 mm).
✅ Length is of folds adjustable up to 1.00 meter.
✅ Cast Iron sidewalls are closed to make the machine robust and sturdy.
✅ Folding blades mounted on the carriage of steel roller chains.
✅ a simple device for quick and precise folding with knife adjustment
✅ Operating speed: 50 meters/minute.
✅ Drive on motor 2HP x 960RPM.
✅ Stroke-type length Counter with manual setting or ⭕ Digital counter.
₹250,000.00
Single Folding Machine
This Single Folding machine is one of the fabric makeup machinery which has the following features :
- Firstly, the Single Folding machine does fold the fabric from loose form to an organized plated state before performing dyeing/printing/processing operations.
- In other words, the fabric needs an inspection before starting any processes.
- Secondly, the Single Folding machine also measures fabric length before any operation or after all processes.
- Thirdly, the Single Folding machine comes in four different sizes from 41″/36 (Small)* to 72″/67 (Large)
- Fourthly, woven fabrics like cotton, viscose, rayon, wool & polyester weigh from 70 to 700 gsm/meter square and fold on the Single Folding machine.
- Fifth and most importantly, the speed can be achieved up to 50 meters per minute while performing the process.
In conclusion, this machine is best suitable for the garment industry or dyeing & printing plants.
🔸 Technical Specification
✅ For the fabric up to 1700MM
✅ The working table descends up to 15” (380 mm).
✅ Length is of folds adjustable up to 1.00 meter.
✅ Cast Iron sidewalls are closed to make the machine robust and sturdy.
✅ Folding blades mounted on the carriage of steel roller chains.
✅ a simple device for quick and precise folding with knife adjustment
✅ Operating speed: 50 meters/minute.
✅ Drive on motor 2HP x 960RPM.
✅ Stroke type length Counter with manual setting or ⭕ Digital counter.
🔸 Payment, Taxes and Delivery
Payment: Before dispatch of machinery, 40% advance and a balance against the proforma invoice.
Delivery: Delivery of machine ideally comes within 4 to 6 weeks.
Freight: Will be paid by the customer.
Sales Tax: GST 18% (Domestic Orders) Or Vat 4% +1% No CST against form “H”( export orders).
Installation: Will be charged extra per machine over and above the price.
1. Select Product
Choose the required specification & submit the details.
2. Get Offer
Get a Detailed Offer.
3. Pay The Advance
Pay the advance amount as per agreed terms.
4. Product Under Construction
Product goes under Construction according agreed time.
5. Pay The Rest Amount
Pay the balance amount as your machine get ready to dispatch.
6. Shipment Initiated
Shipment option available through Manufacturer.
7. Installation
Finally, the product will be installed at your plant.

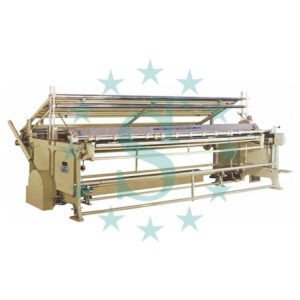

Single Folding Machine | Best Batching machine | 41 to 72" width
A single folding machine is a fabric folding machine which fold/batch as well as measure the totals the length of fabric before the dyeing or printing process and also measures it afterwards.
Product SKU: M/B/S-1
Product Currency: ₹
Product Price: 250000
Price Valid Until: 2023-08-01
Product In-Stock: PreOrder
Editor's Rating:
4.5
4.5
| Table Size | 41” / 36”, 55” / 50”, 65” / 60”, 72” / 67” |
|---|
Single Folding Machine | Best Batching machine | 41 to 72" width
A single folding machine is a fabric folding machine which fold/batch as well as measure the totals the length of fabric before the dyeing or printing process and also measures it afterwards.
Product SKU: M/B/S-1
Product Currency: ₹
Product Price: 250000
Price Valid Until: 2023-08-01
Product In-Stock: PreOrder
Editor's Rating:
4.5
4.5
Youtube
Single Folding Machine | Best Batching machine | 41 to 72" width
A single folding machine is a fabric folding machine which fold/batch as well as measure the totals the length of fabric before the dyeing or printing process and also measures it afterwards.
Product SKU: M/B/S-1
Product Currency: ₹
Product Price: 250000
Price Valid Until: 2023-08-01
Product In-Stock: PreOrder
Editor's Rating:
4.5
4.5
Based on 0 reviews
Be the first to review “Single Folding Machine”
