Dyeing Machinery
HTHP Jigger
HTHP Jigger

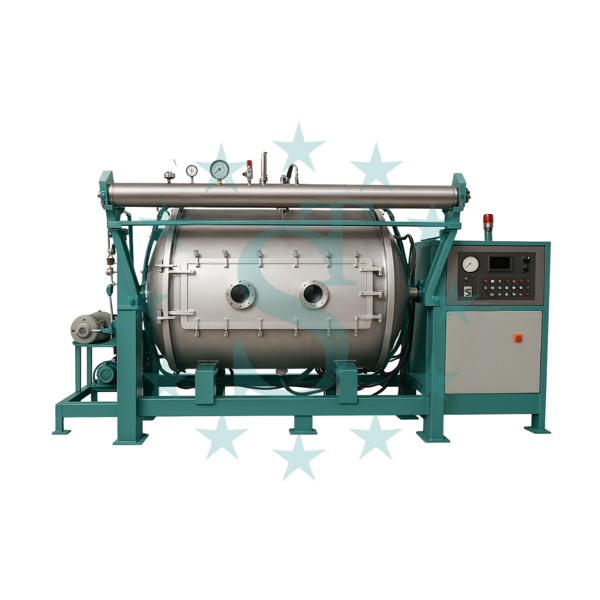

The HTHP Jigger machine (High-Temperature High-Pressure Jigger) is a specialized dyeing machine used in textile fabric dyeing.
The HTHP Jigger dyeing machine is specifically designed to address the challenges associated with dyeing synthetic fabrics and their blends, polyester, nylon, acrylic, and acetate in open-width form under controlled high-temperature and High-pressure conditions.
Unlike ordinary atmospheric jiggers like the Atmospheric Jigger, which work at temperatures up to 98 °C, the HTHP Jigger dyeing machine can work up to 135 °C, enabling deeper dye penetration and better color fastness for heat-sensitive and synthetic materials.
HTHP jigger machine’s key elements:
- Superior Dyeing and Colorfastness: The combined effect of hot temperature and pressure ensures deep, uniform dye penetration into dense synthetic fabrics, resulting in vibrant, consistent, and long-lasting colors with enhanced wash and light fastness properties.
- Crease-Free Processing: The HTHP jigger handles fabrics in their full, open-width state, and advanced tension control systems prevent the formation of permanent creases or rope marks, a critical advantage for woven fabrics.
- High Reproducibility and Efficiency: Sophisticated automation and process controls enable precise management of all dyeing parameters, ensuring that the desired shade is achieved “first time right” and can be flawlessly replicated across multiple batches.
Conclusion:
The HTHP Jigger machine is a vital tool for any fabric dyeing unit aiming for consistent, high-quality results on synthetic and blended fabrics. Using a controlled, open-width process with high-temperature and high-pressure dyeing. It guarantees excellent shade uniformity, color fastness, and flexibility in processes.
For mills seeking premium textile markets, investing in an HTHP Jigger dyeing machine delivers long-term advantages in quality, efficiency, and customer satisfaction.
🔸 Technical Specification of HTHP Jigger
✅ Working width can be customized up to: 2000 mm
✅ The Maximum Batch diameter can be achieved from 800 mm to 1100 mm
✅ Capacity: 300 to 2000 kilograms
✅ Comes with a Heat exchanger.
✅ The machine working temperature can be achieved up to 135℃.
✅ Speed: 80 meters per minute for dyeing.
₹3,850,000.00
Summery
HTHP Jigger
The HTHP Jigger machine (High-Temperature High-Pressure Jigger) is a specialized dyeing machine used in textile fabric dyeing.
The HTHP Jigger dyeing machine is specifically designed to address the challenges associated with dyeing synthetic fabrics and their blends, polyester, nylon, acrylic, and acetate in open-width form under controlled high-temperature and High-pressure conditions.
Unlike ordinary atmospheric jiggers like the Atmospheric Jigger, which work at temperatures up to 98 °C, the HTHP Jigger dyeing machine can work up to 135 °C, enabling deeper dye penetration and better color fastness for heat-sensitive and synthetic materials.
HTHP jigger machine’s key elements:
- Superior Dyeing and Colorfastness: The combined effect of hot temperature and pressure ensures deep, uniform dye penetration into dense synthetic fabrics, resulting in vibrant, consistent, and long-lasting colors with enhanced wash and light fastness properties.
- Crease-Free Processing: The HTHP jigger handles fabrics in their full, open-width state, and advanced tension control systems prevent the formation of permanent creases or rope marks, a critical advantage for woven fabrics.
- High Reproducibility and Efficiency: Sophisticated automation and process controls enable precise management of all dyeing parameters, ensuring that the desired shade is achieved “first time right” and can be flawlessly replicated across multiple batches.
Conclusion:
The HTHP Jigger machine is a vital tool for any fabric dyeing unit aiming for consistent, high-quality results on synthetic and blended fabrics. Using a controlled, open-width process with high-temperature and high-pressure dyeing. It guarantees excellent shade uniformity, color fastness, and flexibility in processes.
For mills seeking premium textile markets, investing in an HTHP Jigger dyeing machine delivers long-term advantages in quality, efficiency, and customer satisfaction.
Payment, Taxes, & Delivery
- Payment: 50% advance is required, with the balance payable on the proforma invoice.
- Delivery: The machine is ideally delivered within 6 to 8 weeks.
- Freight: Will be paid by the customer.
- Tax: GST 18% (Domestic Orders)
- Installation: ₹5000 per visit. Travelling and accommodation client scope.
